About Baofeng DM-1701

The DM-1701 is the most cost-effective DMR HT on the market, with solid hardware construction and easy to use programming software. The greatest appeal of Baofeng’s DM-1701 lies in its ability to deliver great DMR compatibility, crystal clear audio & great cost-effective. The light-weight portability, high capacity battery, and user-customizable design all make it the perfect radio for both experienced and new HAM users.

Users can apply the [.rdt] template file that saves all the custom settings to the radio through CPS. The DM-1701 template can be used with the MD-380/MD-2017/MD-9600

✧ SMA-Female Antenna (Backward Compatible with SMA-Female Antennas)
✧ 2-Pin K-plug port for most radio accessories, compatible original Baofeng accessories and Radioddity antenna, PTT speaker Mic, etc.
✧ USB Programming Cable Included - Windows PC Required
✧ Firmware Upgradeable

Multiple communication efficiency
The DM-1701 offers large storage with 3,000 Channels, 10,000 Talk Groups and 120,000 Contacts. Channel selection can be switched by top rotate knob or input channel number by keypad. CPS supports mass editing on channels and contact IDs, importing and exporting them with CSV format, which makes it easier to write code-plugs and more complex application requirements.

Strong digital function
The DM-1701 is DMO True2-slot DMR, it not only supports DMR protocol, including single call, group call and all call; it also supports two-way radio detection, call alert, remote monitoring, remote inhibit/kill and SMS Data transmission function. Digital alarm function and encryption are also available, encryption only supports calling between the DM-1701 devices. In digital mode, you can monitor the color code, time slot, frequency and contact ID.

Multiple customizable keys
The DM-1701 provides five user-defined keys based on user habits. Three side keys are designed as the default setting, P1&P2 are blank setting, users can change their setting by PC programming.

SMS Function
This product supports the DMR data function, and allows sending and receiving messages; the maximum length of each message is 144 characters and less than 50 lines.

Miltary Quality DMR
Design for both commercial and amateur usage, the DM-1701 has high-quality housing, strong spring belt clip that makes it more portable. The 2200mAh Li-ion battery has endurance for 48 hours. Equipped with an original Baofeng or Radioddity SMA-F antenna, its talking range can be up to 3-10 km (1.8-6.2 miles) under most circumstances.

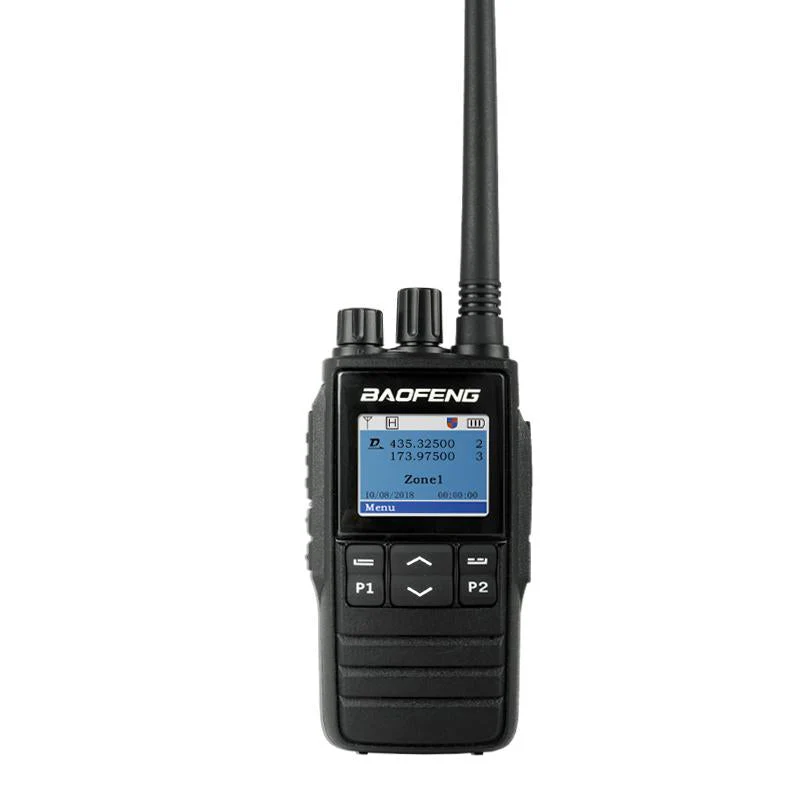

1.77" color TFT Display

Baofeng DM-1701 is a dual-band DMR radio available. Designed for both amateur and commercial usage with its large, bright 1.77" color TFT display. The DM-1701 can store 3,000 Channels with 10,000 Talk Groups and 120,000 Contacts.

Larger Capacity Li-ion Battery

Equipped with a 2200mAh Li-ion battery. Up to 18 hours working time and 48 hours standby time. It lasts 30% longer than the other DMR radios. DM-1701 is lightweight and handy, perfect for long QSO’s.

What's in the box?

1x Baofeng DM-1701 DMR
1x 2200mAh Li-ion Battery
1x Belt Clip
1x Dual Band SMA-F Antenna
1x Desktop Charger
1x User Manual
1x PTT Earpiece
1x Wrist Strip
1 x USB Programming Cable

Specifications:

Frequency Range	VHF: 136-174MHz; UHF:400-480MHz
Output Power	1W/2W/5W
Zones	250 ( allow 64 channels per zone)
Scan List	250
Digital emergency alarm	32
Channel Spacing	25KHz(Wide Band), 20KHz, 12.5KHz(Narrow Band)
Phase-locked Step	2.5K/5K/6.25K~50K
